16mm - 63mm HDPE Pipe Machine , Plastic Pipe Manufacturing Machine CE Approved

Zhangjiagang Beisu Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

16mm - 63mm HDPE Pipe Machine , Plastic Pipe Manufacturing Machine CE Approved

Brand Name : BEISU

Model Number : BS-63

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/P

Supply Ability : 10 set per month

Delivery Time : 35 working days

Packaging Details : Plastic film packing and pellet fix on the bottom

Material : HDPE/PP/PPR/PEX/PC

Pipe range : 16mm~63mm

Extruder model : SJ-65/33

Max. output : 180kg/h

Max.speed : 15m/min

Motor power : 37Kw

Vacuum power : 3Kw

Water power : 4Kw

Haul off power : 0.75Kw

Cutter power : 2.2Kw

Inverter brand : ABB or Delta

Temperature brand : OMRON

Line length : 35000mm

Contact Now

HDPE pipe production line for Pressure and Gas pipe

Application:

The HDPE pipe production line produced by BEISU is suitable for the following pipe production lines: PE pipe production line, MPP power pipe production line, PE water pipe production line, PE water supply pipe production line, PERT pipe production line, PPR pipe production line, porous plum tube production line, alloy bushing tube production line. , composite plastic pipe production line, PE composite pipe production line, etc.

Summary of HDPE Pipe diameter for 16~63mm

A1: Maximum Capacity: it can reach 2.5~3 ton per 24 hours depend on formula

A2: Water supply:≤25℃,≥0.3Mpa

A3: Air supply:0.3m³/min,>0.5 Mpa

A4: Temperature:0-40℃

A5: Humidity:95% no condensation

A6: Installation power:123kw

A7: Tatal Length:35 meters

Low-voltage electrical appliances:
A1:Button, toggle switch: France Schneider products
A2:Contactor: French Schneider products
A3:Temperature control table: Japan OMRON
A4:Heating coil: stainless steel ceramic heater

Production line conditions:
A1:Location: Factory interior
A2:Power: Safety zone with warning sign
A3:Temperature: 0-40 ° C
A4:Humidity: 85% without condensation

Layout:

Raw material+additive→Mixer→Auto Feeder→Hopper dryer→Single screw Extruder→-Moulds→Vacuum calibration tank→Spray Cooling Tank→Haul-off Unit→Cutting Unit→Stacker

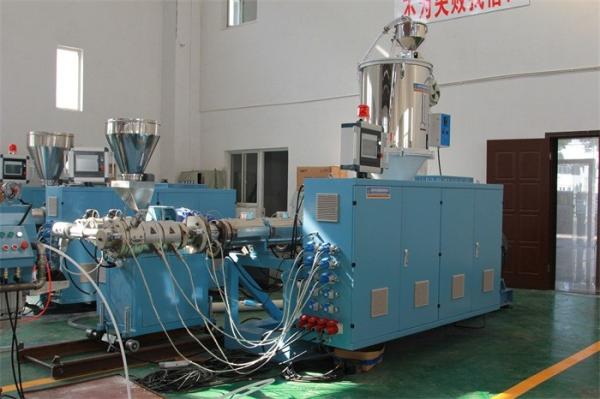

16mm - 63mm HDPE Pipe Machine , Plastic Pipe Manufacturing Machine CE Approved

Production process of HDPE pipe production line produced by BEISU Machinery:

(1) HDPE raw materials and masterbatch pellets are dried and mixed into the dry mixing machine. The HDPE raw materials are uniformly mixed into the hopper through the vacuum suction machine. The vacuum suction machine produced by Benecke has drying and drying at the same time. The function.

(2) The raw materials are plasticized by a single-screw extruder and extruded, and the side SJ30 single-screw extruder extrudes the color-coded line.

(3) The HDPE pipe is extruded from the mold and then enters the vacuum sizing box for sizing and pipe cooling.

(4) After the HDPE pipe comes out of the vacuum sizing box, it enters the cooling water tank or cools the spray water tank according to the pipe diameter.

(5) After the pipe is formed, it enters the printing process of the printer.

(6) Traction into the planetary cutting machine by the crawler tractor

(7) Planetary cutting machine for HDPE pipe cutting length

(8) After the pipe cutting is completed, it will automatically slide into the stacking frame to carry out the packing process.

Details specification pictures of HDPE pipe production line by BEISU Machinery:

16mm - 63mm HDPE Pipe Machine , Plastic Pipe Manufacturing Machine CE Approved

16mm - 63mm HDPE Pipe Machine , Plastic Pipe Manufacturing Machine CE Approved

16mm - 63mm HDPE Pipe Machine , Plastic Pipe Manufacturing Machine CE Approved

16mm - 63mm HDPE Pipe Machine , Plastic Pipe Manufacturing Machine CE Approved

16mm - 63mm HDPE Pipe Machine , Plastic Pipe Manufacturing Machine CE Approved

Main technical parameter:

Diameter(mm) 20-63 20-110 75-250 110-315 160-450 315-450
Conical extruder SJ65 SJ65 SJ75 SJ90 SJ90 SJ120
Extruder powder(KW) 55 75 110 110 160 280
Max lineal speed 12 10 3.5 3 2 1.2
Max capacity(K/G) 150 180 350 450 450 700

O.D Average external diameter Pipe Series
S5 S4 S3.2 S2.5
Dem,min Dem,max Nominal wall thickness
20 20.0 20.3 2.0 2.3 2.8
25 25.0 25.3 2.3 2.8 3.5 4.2
32 32.0 32.3 2.9 3.6 4.4 5.4
40 40.0 40.4 3.7 4.5 5.5 6.7
50 50.0 50.5 4.6 5.6 6.9 8.3
63 63.0 63.6 5.8 7.1 8.6 10.5
75 75.0 75.7 6.8 7.4 10.3 12.5
90 90.0 90.9 8.2 10.1 12.3 15.0
110 110.0 111.0 10.0 12.3 15.1 18.3
