Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System

Name: Fully Automatic 2000kgh Pvc Mixer Machine With Online Dosing System
Brand: BEISU
Price: 37 USD

China Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System wholesale

Place of Origin : CN;JIA

Brand Name : BEISU

Certification : CE ISO

Supply Ability : 250 Set/Sets per Year

Packaging Details : Plastic film packing or wood package as customer requirements

MOQ : 1 - 2 Sets

Price : $37,000.00

Condition : New

Material : Stainless Steel

Output (kg/h) : 200 - 2000kg/h

Capacity (kg) : 200~1000

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Pump, Pump, Pump, Pump, Pump, Pump, Pump

Application : Plastic Mixer

Automatic Grade : Automatic

Voltage : Customzied

Dimension(L*W*H) : Customized

Warranty : 1 Year

After-sales Service Provided : Video technical support, Video technical support, Video technical support, Video technical support, Video technical support

Weight (KG) : 220 KG

Power (kW) : 3

Applicable Industries : Food & Beverage Factory, Food & Beverage Factory

After Warranty Service : Field maintenance and repair service, Field maintenance and repair service, Field maintenance and repair service, Field maintenance and repair service

Local Service Location : none, none, none, none

Showroom Location : none, none, none, none, none, none, none, none, none, none, none, none, none, none, none, none

Raw Material : PVC/PE/PP Powder, Granules or Liquid

Mixing speed : 860 RPM

Material of mixing blade : S.S304

Method of mixing blade : Double propellers

Hot mixing motor power : 55Kw or 75Kw or110Kw or 130Kw

Mixing bearing brand : NSK, SKF or WANFANDIAN

Cold mixing drive method : Belt reducer

Temperature brand : OMRON,JAPAN

Contactor brand : SCHNEIDER or SIEMENS

Inverter brand : Delta or ABB

Port : SHANGHAI or NINGBO PORT

Contact Now

Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System

Application of high-speed mixer: The high-speed and high-efficiency mixer and automatic weighing and oil mixing system manufactured by BEISU Machinery are particularly suitable for efficient and uniform mixing of solid-liquid, solid-powder, powder-powder, and powder-liquid. Products are widely used in fine chemicals, feed, electronics, food, hard materials, ceramic materials, biology, medicine, non-metallic mining, building materials, coatings, dyes, fertilizers and metal powders for better mixing. Shear sensitive crystalline powder, batch product mixing, mixing liquid into solid.

The working principle of the central feeding system: The central feeding system realizes the centralized processing of raw materials. Through a closed conveying system, a one-to-many automatic controller sends a variety of different raw materials to each molding machine as required, which saves energy and reduces noise and pollution. The most ideal automatic system. For the raw materials that have been dried in the raw material preparation area, we will transport the dry air to prevent the raw materials from being damp again. The advanced central controller and the pulsating dust collector design prevent the system from clogging thing.

Vertical type High speed mixer:

Model	Total volume	Available capacity	Motor power	Shaft speed	Heating method
SHR-5A	5L	3L	1.1Kw	1400rpm	Self friction/electric
SHR-10A	10L	7L	3Kw	2000rpm
SHR-25A	25L	20L	5.5Kw	1440rpm
SHR-50A	50L	35L	7/11Kw	750/1500rpm
SHR-100A	100L	75L	14/22Kw	650/1300rpm
SHR-200A	200L	150L	30/42Kw	475/950rpm
SHR-300A	300L	225L	40/55Kw	475/950rpm
SHR-500A	500L	375L	47/67Kw	430/860rpm
SHR-800A	800L	600L	60/90Kw	370/740rpm

Vertical type High speed mixer:

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total volume	100/200	200/500	300/600	500/1000	800/1600
Effective volume	75/160	150/320	225/400	375/650	600/1050
Shaft speed	650/130/180	475/950/130	475/950/60	430/860/60	370/740/50
Heat method	Self friction/electric
Heat method	Water
Mixing time	6-10	6-10	6-10	6-10	8-12
Motor power	14/22/7.5	30/42/7.5	40/55/11	55/75/11	110/30

Horizontal type High speed mixer:

Model	SRL-W500/1600	SRL-W800/2000	SRL-W800/2500	SRL-W800*2/4000
Total volume	500/1600	800/2000	800/2500	1600/4000
Effective volume	330/1000	560/1400	600/1500	1120/2700
Shaft speed	430/860/70	330/660/55	330/660/60	350/700/65
Heat method	Self friction/electric
Heat method	Water
Mixing time	8-12	8-12	8-12	8-12
Motor power	55/75/22	86/110/22	86/110/22	110*2/30

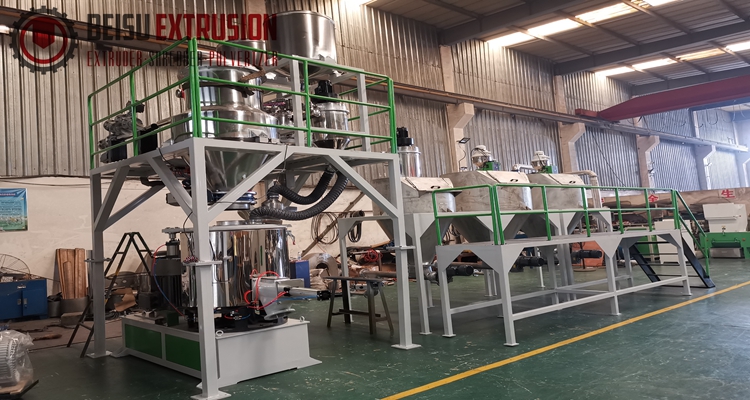

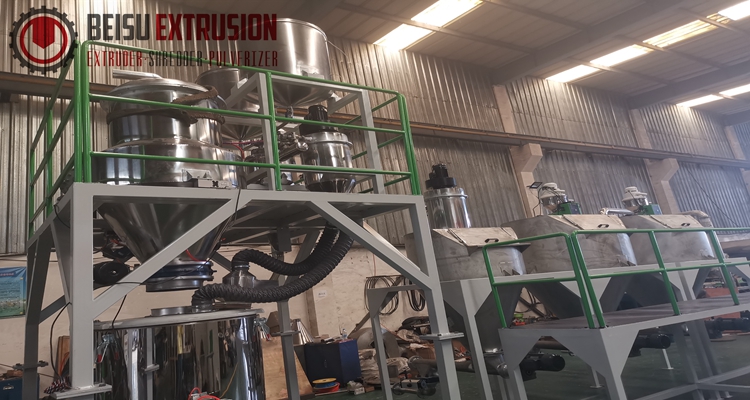

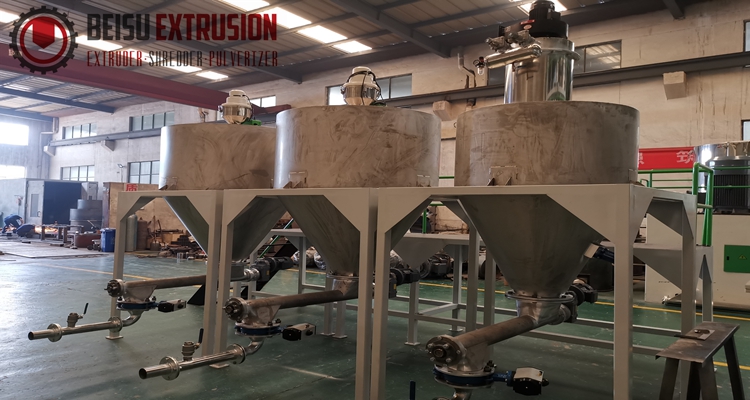

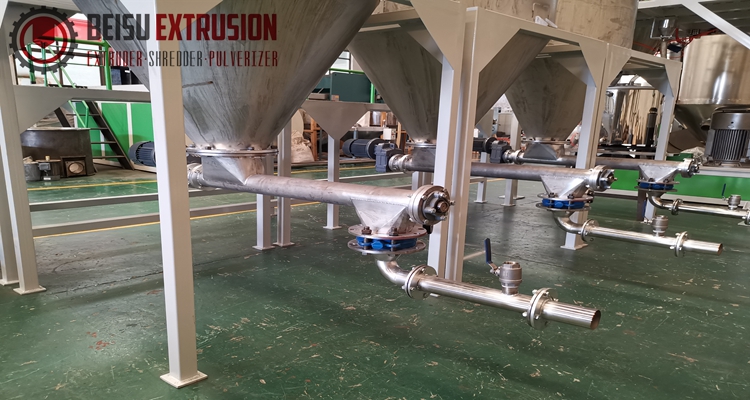

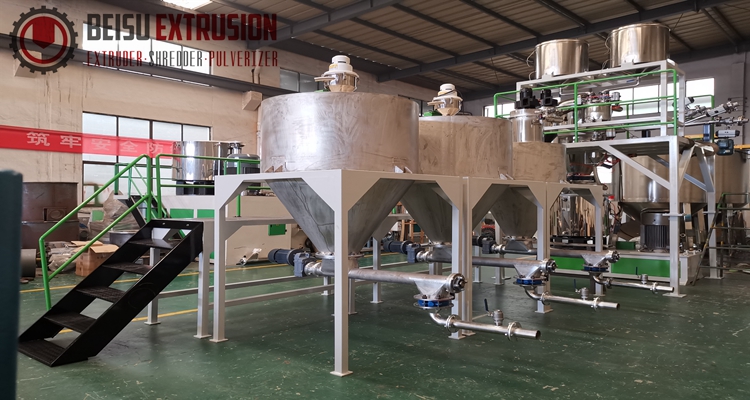

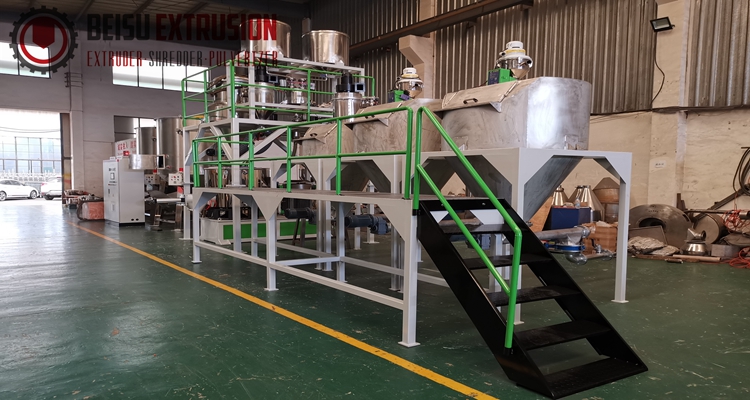

The structure of the central feeding system:

A1:The automatic feeding system consists of a vacuum pump (no oil or water), stainless
steel suction nozzle, delivery hose, PE filter (or 316L stainless steel filter), compressed air blowback equipment, pneumatic discharge door equipment, vacuum hopper and material It is composed of automatic control equipment, and the whole system is well planned and exquisitely produced.

A2:The automatic feeding system is divided into two types: gap discharge and continuous discharge.

The gap discharge is beneficial to reduce the capital expenditure of the equipment and facilitate the control of the material level. Continuous discharge is generally used for vacuum transportation of materials during long distances and large output values.

A3:The automatic feeding system can automatically transport various materials to the hoppers of packaging machines, injection molding machines, crushers and other equipment, and can also directly transport the mixed materials to the mixer (such as V-type mixer, two-dimensional mixer, In the three-dimensional mixer, etc.), it reduces the labor intensity of workers and solves the problems of dust overflow during feeding. It is a reliable equipment for pharmaceutical factories and food factories that have passed GMP certification to promote clean and civilized production.

A4:The automatic feeding system uses a vacuum pump to pump air, so that the entire system such as the inlet of the suction nozzle and the vacuum automatic metering system is in a certain vacuum condition.

A5:The powder and granular materials are sucked into the nozzle with the outside air to form a material flow and arrive through the suction pipe. The hopper is used to separate the gas and materials in the hopper.

A6:The separated materials enter the receiving equipment. Feeding and discharging are completed by continuously opening and closing the Pneumatic three-way valve, and the opening and closing of the pneumatic three-way valve is controlled by the control center.
